G Series 12L Decumulative

G Series 12L DECUMULATIVE

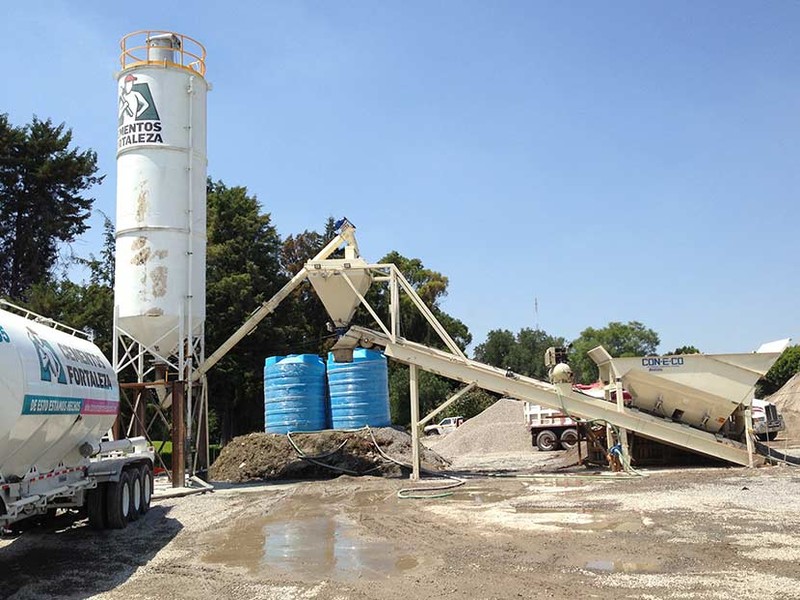

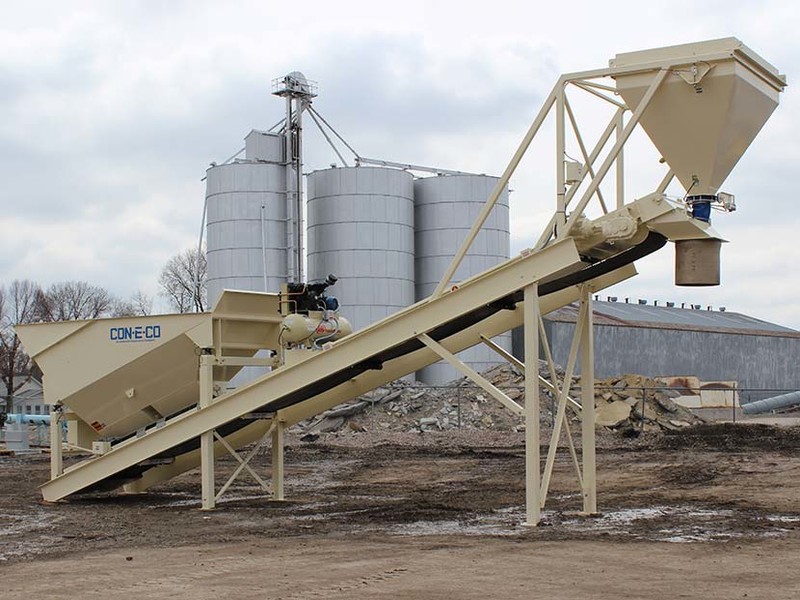

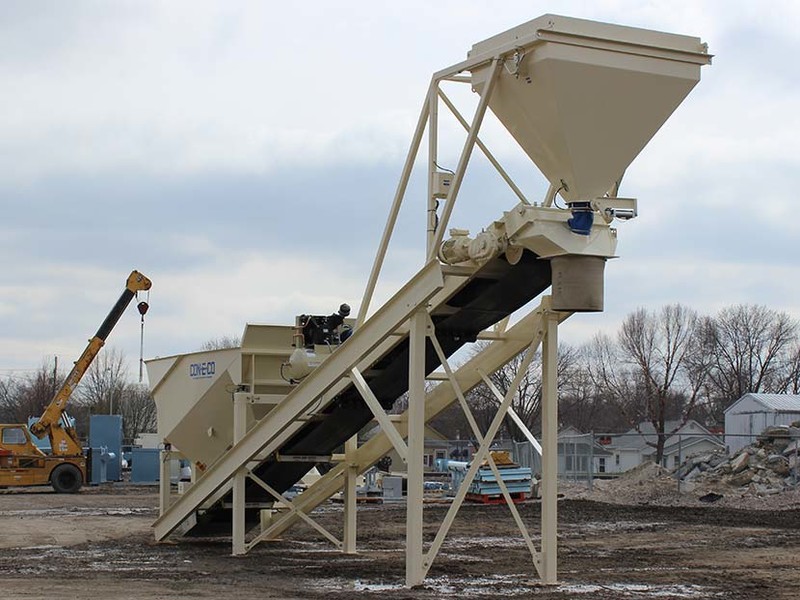

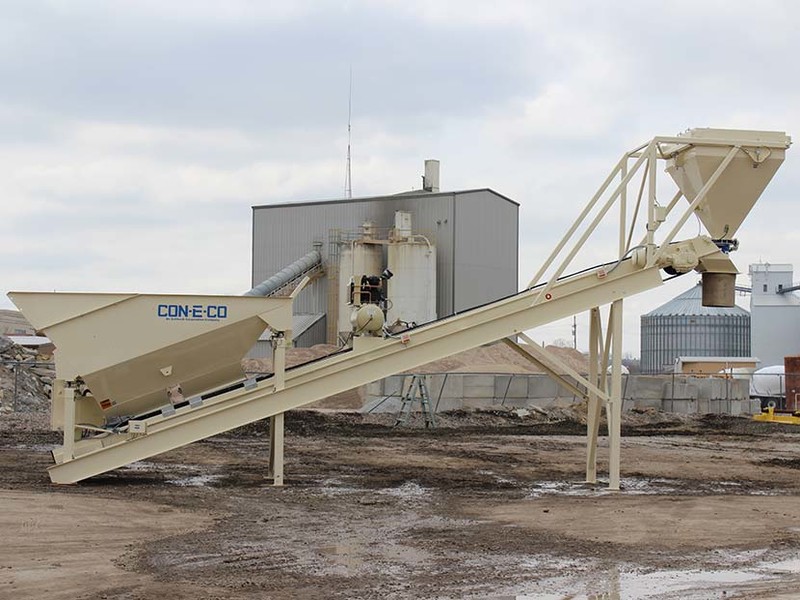

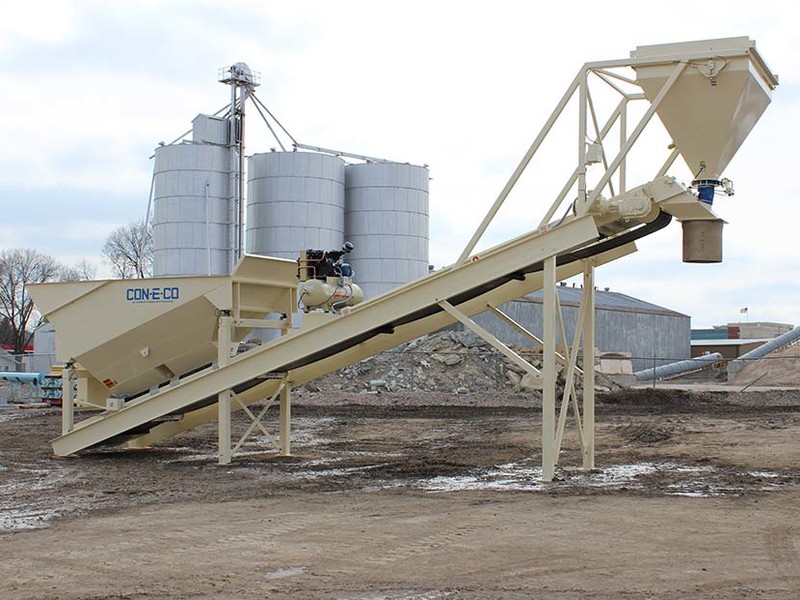

The CON-E-CO G12 Decumlative batch plant features a compact design and smooth operation with cycle times of 2.5 to 3 minutes.The easy to transport plant ships on a tractor trailer. The available rear-mounted 19,000 lb. capacity single rear axle includes air brakes, a heavy-duty suspension, tail and brake lights, and a fifth wheel rub plate with king pin.

  • Aggregate weighing bin capacity of 477 cubic feet (13.5 cubic meters)
  • Aggregate discharge conveyor is 24-inches wide (610 mm)
  • Electrical system includes a 3-phase with 120 VAC transformer for control voltage
  • 12yd gravity style cement batcher
  • Transportable on flatbed trailer, 40 foot high cube container or optional axle
“G” Series 12L & 12C

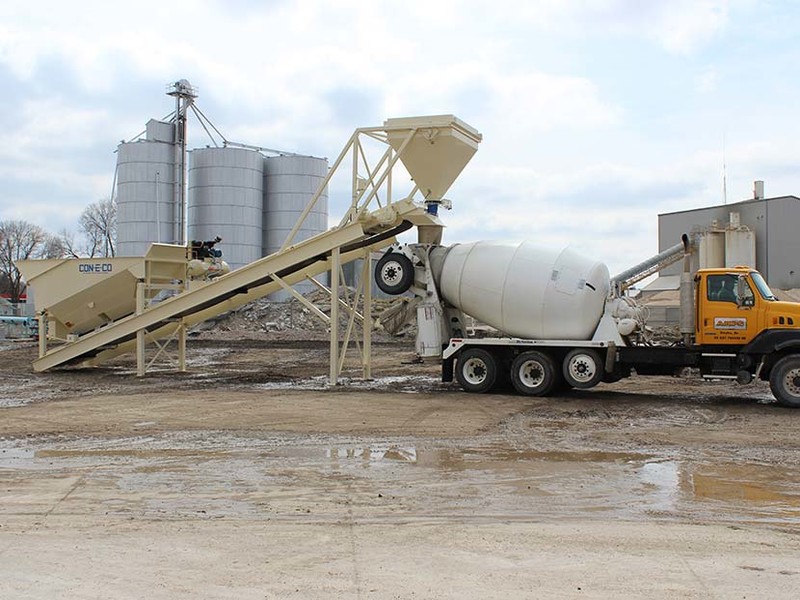

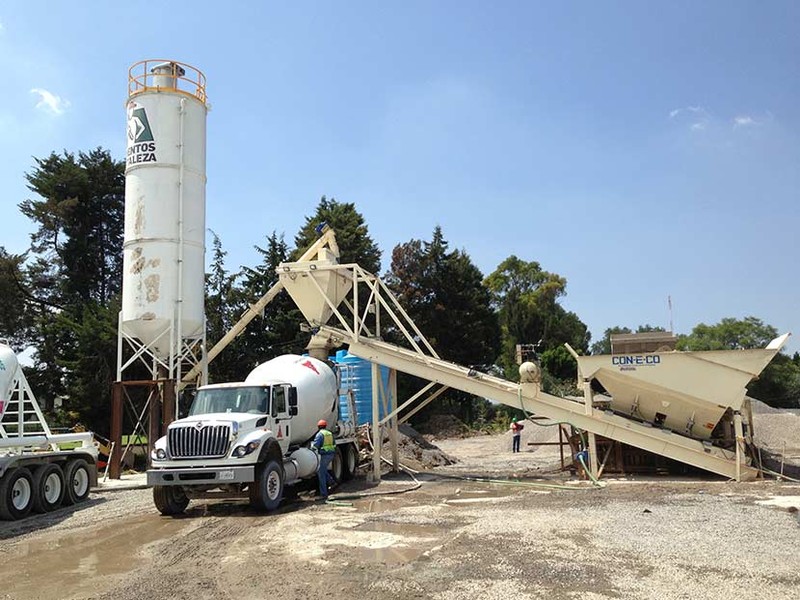

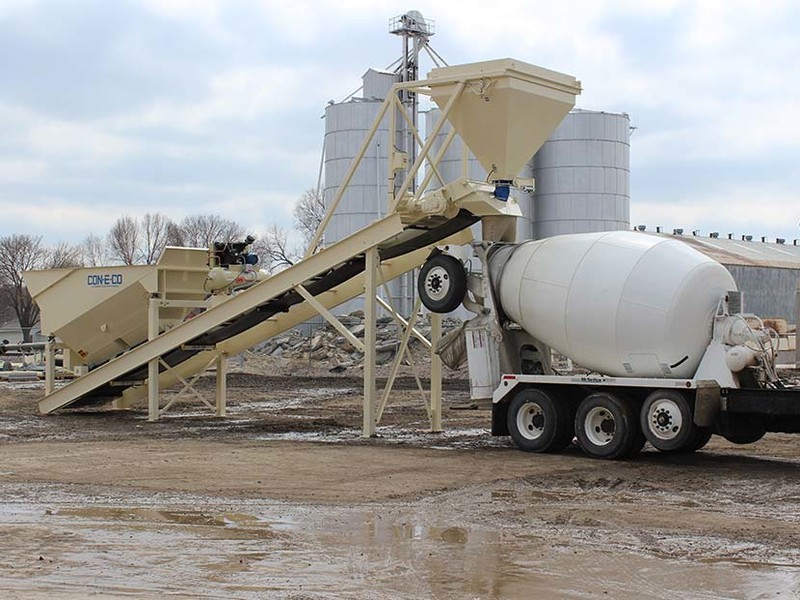

  • 180 degree truck charging
  • Gravity cement batcher and aggregate weigh bin
  • Can utilize customers’ existing silo’s
  • 12C version can be shipped in a 40 foot high cube container
  • 12L version ships on a trailer
  • Optional transportation system
